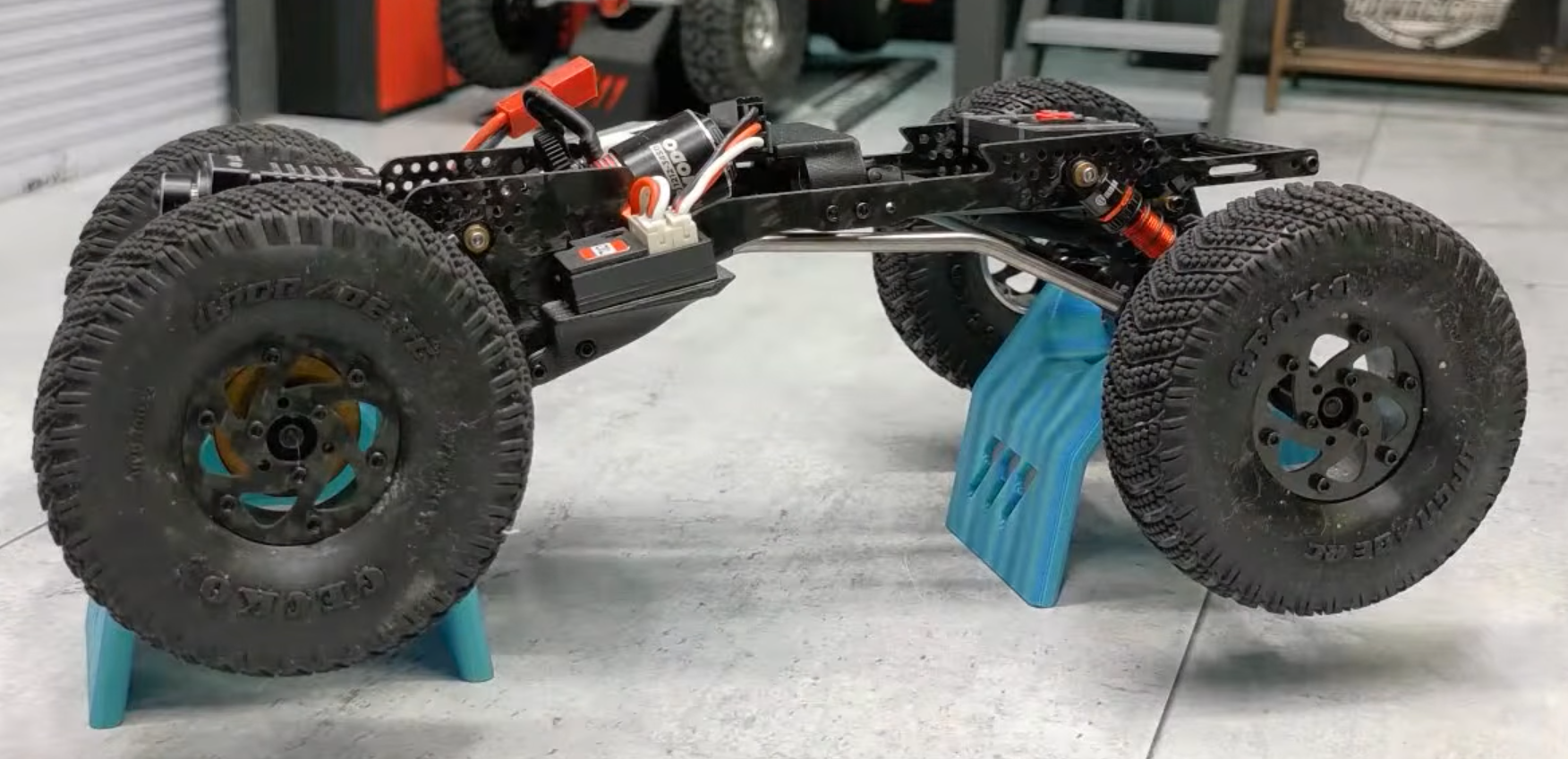

Building the CL Designs Mini Spartan: The Next Evolution of Micro Crawling
Micro crawler performance has advanced rapidly over the last few years, but few chassis have pushed the platform forward quite like the CL Designs Mini Spartan. Designed around extreme clearance, aggressive breakover geometry, and a radically shortened front end, the Mini Spartan takes concepts once reserved for full competition rigs and scales them down into a compact micro platform.
Built correctly, this chassis transforms the driving experience. The result is a crawler that feels planted, controlled, and capable of clearing terrain that stops traditional setups in their tracks.
The Core Concept: Forward Clearance and Aggressive Geometry
The defining feature of the Mini Spartan is its shortened front end combined with an advanced forward skid design. Compared to platforms like the Gladius XL, the Mini Spartan reduces the front overhang significantly, creating a much steeper approach angle and allowing the skid to contact obstacles earlier and more smoothly.
This chassis was designed specifically around maximizing breakover clearance. With the skid positioned aggressively and paired with large 63mm tires, the crawler transitions over rocks with far less hang-up than traditional layouts. Instead of dragging links or chassis rails, the skid immediately begins to slide across obstacles with controlled momentum.
The 21-degree skid angle further enhances this effect. On technical terrain, that additional angle changes how the entire chassis reacts under compression and during climbs. Obstacles that would normally stall a crawler become smoother and more predictable to navigate.
Why the Mini Spartan Is So Good
What makes the Mini Spartan stand out is how purpose-built the entire chassis feels once it reaches technical terrain. The shortened front geometry improves approach angles dramatically while helping the truck stay planted during climbs. The aggressive skid design reduces hang-ups on rocks and sharp transitions, allowing the chassis to maintain momentum where many traditional setups get stuck.
The Mini Spartan also rewards controlled suspension tuning instead of excessive flex, creating a crawler that feels stable, predictable, and easier to place precisely on difficult lines. Combined with its lightweight construction, floating transmission system, and modern competition-focused layout, the chassis delivers a driving experience that feels noticeably more refined than most traditional micro crawler builds.
Chassis Construction and Floating Transmission Design
One of the most innovative aspects of the Mini Spartan is the floating transmission system integrated directly into the chassis. Instead of relying on traditional bulky transmission cases, the drivetrain becomes part of the chassis structure itself.
This design lowers weight, reduces unnecessary bulk, and creates a cleaner center section that improves both clearance and driveline efficiency. Another benefit is reduced drivetrain noise. Paired with lightweight spur gears, the transmission setup produces a noticeably quieter and smoother driving experience than most micro crawlers.
The chassis arrives pre-assembled with the transmission already mounted, allowing builders to focus on electronics and suspension setup rather than complicated assembly procedures. Included body mounts, carrier bearing mounts, and electronics mounting options simplify the process while keeping the build clean and compact.
Suspension and Shock Tuning
Suspension setup is critical on a chassis this aggressive. While many crawlers rely on excessive articulation, the Mini Spartan rewards a more controlled and balanced approach.
This particular setup uses shortened Injora 39mm shocks internally limited to approximately 35–36mm of travel. Limiting the stroke reduces unwanted body movement while maintaining enough articulation to keep traction on uneven terrain. The rear shocks are mounted at an angle to improve cycling and maintain stability under compression.
The result is a crawler that feels composed instead of floppy. While maximum flex may look impressive on a bench, controlled suspension movement produces far more confidence on real terrain. Proper geometry allows the chassis to stay balanced without sacrificing climbing capability.
Electronics and Steering Performance
The electronics package plays a major role in how refined the Mini Spartan feels on the trail. A VTEC ESC paired with a Furitek Micro Komodo motor provides smooth throttle modulation and strong low-end control, especially on technical climbs where precision matters most.
Steering duties are handled by the NSDRC RS100 servo, widely considered one of the strongest and most reliable options available for high-performance micro crawlers. Combined with lightweight Super 8 nylon axles and Deluxe Racing knuckles, the steering remains responsive and predictable even under heavy load.
Because the front end is so short, careful electronics placement becomes important. Tucking components forward while keeping the center of gravity low allows the chassis to maintain its aggressive climbing characteristics without becoming unstable.
Tire Setup and Weight Balance
No crawler performs without proper tires, and the Mini Spartan benefits heavily from carefully selected wheel and tire combinations.
This build uses Upgrade RC Micro Gecko tires mounted with brass inner rings up front and lightweight printed rings in the rear. The balance creates forward weight bias for climbing while keeping the rear light enough to maintain responsiveness.
The Micro Geckos stand out because of their soft compound combined with surprisingly supportive sidewalls. Their directional chevron-style tread pattern grips aggressively on rock surfaces while still maintaining stability during side-hilling.
Unlike overly soft tires that collapse under weight, the Geckos provide controlled deformation and predictable traction. When paired with the right inserts, the performance improves even further.
Wheelbase and Link Configurations
The Mini Spartan is available in multiple wheelbase configurations including 155mm, 165mm, and 170mm setups. Each option changes the overall character of the crawler.
The 155mm configuration feels compact and highly technical, ideal for tight lines and steep breakovers. Longer setups add stability while retaining the aggressive geometry that defines the chassis.
Link design also plays a major role. Bent rear links maximize clearance during full compression while allowing smooth suspension cycling. Titanium, brass, and aluminum options all offer different handling characteristics depending on the desired balance between strength and weight distribution.
Final Verdict
The CL Designs Mini Spartan represents a major evolution in micro crawler design. Its shortened front end, aggressive skid geometry, floating transmission system, and competition-focused layout push the platform far beyond traditional builds.
This is not a chassis built for casual shelf display. Every element is designed around technical crawling performance and maximizing capability on real terrain.
Paired with the right suspension setup, electronics, and tires, the Mini Spartan becomes one of the most capable micro crawlers currently available. It rewards thoughtful tuning, precise driving, and builders who want to push their rigs beyond the limitations of conventional chassis designs.
For drivers chasing maximum breakover performance and modern competition geometry in a micro package, the Mini Spartan sets a new benchmark.
