A Closer Look: The Mazz Designs Cheat Code SCX24 Ultimate Build
The micro crawler world is full of clever upgrades, but every so often a build comes along that raises the bar. The Mazz Designs Cheat Code chassis is at the heart of one such project, and it shows just how far the SCX24 platform can be pushed with thoughtful parts selection and creative assembly. Lightweight carbon fiber, precision drivetrain tweaks, and scale details all come together here to form a capable and distinctive machine.
Chassis and Drivetrain

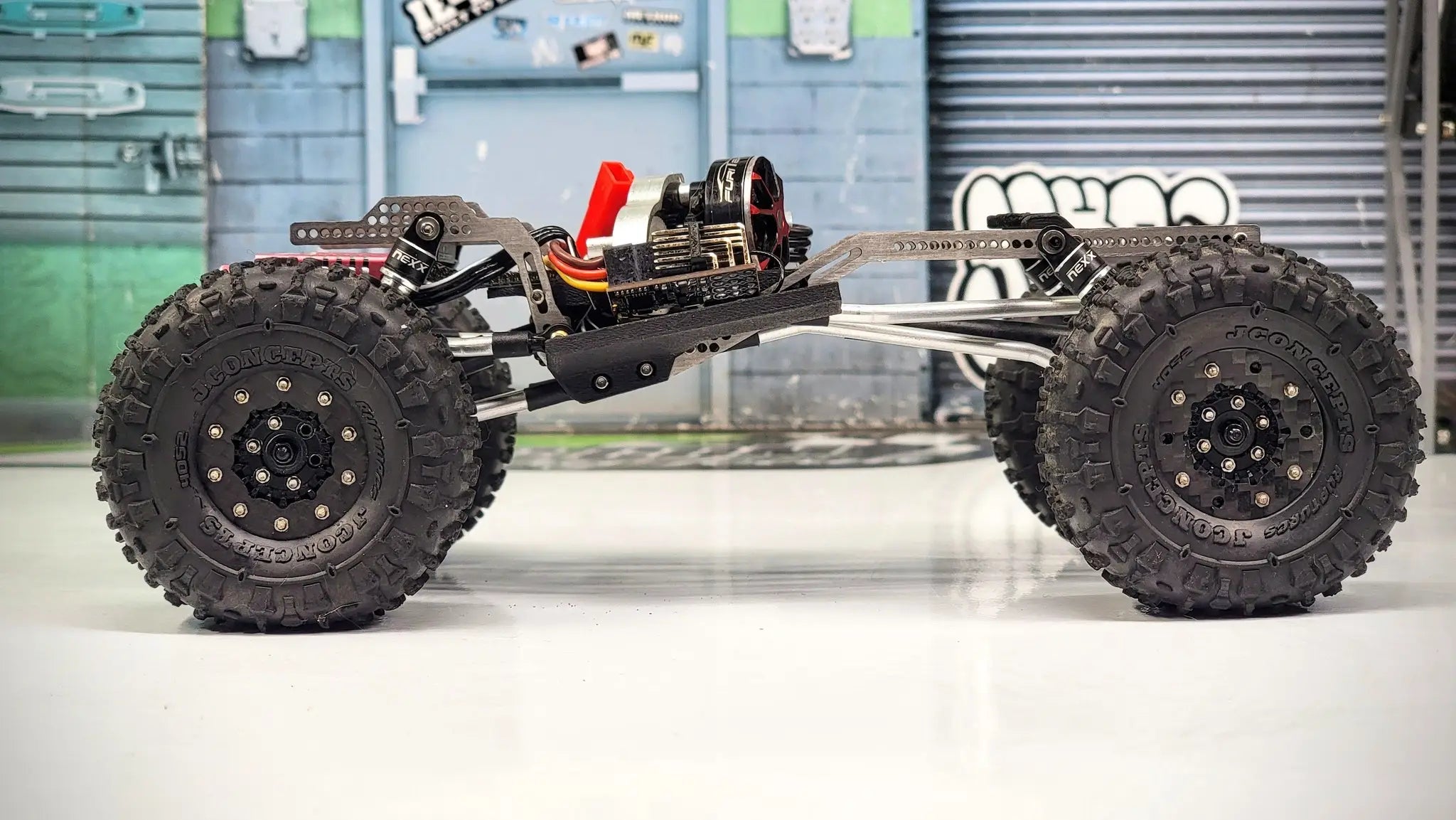

At the core of this build is the original V1 Cheat Code chassis from Mazz Designs, constructed from carbon fiber for strength without unnecessary weight. The drivetrain begins with stock plastic axles, but they have been upgraded with RC Steve CVDs to increase steering angle. A 33 percent front overdrive gear set adds a performance edge by pulling the front wheels through climbs more effectively.
The transmission remains stock, but PN Racing’s 64 pitch Delrin spur and pinion gears refine the system. The smoother engagement and durability of this setup enhance drivability and keep the rig consistent under load.
Wheels, Tires, and Links
Suspension geometry and tire choice are critical to crawling performance, and this build pays close attention. RCS aluminum links were selected for both clearance and a touch of added caster up front, improving steering capability. Wheels and tires combine RC4WD BFG KM3s with Trio Hobby Type B beadlocks, strengthened further with Killer Chassis carbon fiber beadlock rings and Flub RC Slime Ball inserts.
Generic preload aluminum shocks round out the suspension package. While not exotic, they provide stability and articulation that complement the rest of the build.
Electronics Package
Power is handled by a PN Racing 90 turn brushed motor paired with a Holmes Hobbies BR Mini ESC, a reliable combination for precise throttle control. Steering is delivered through the NSDRC RS100 micro servo, known for its torque and consistency. Supporting electronics include an NSDRC Micro BEC and a FlySky compatible four channel receiver, completing a setup that prioritizes responsiveness and control.
Performance and Aesthetics
Performance is only part of the appeal. The body is a Pro Line Power Wagon finished with a custom patina and weathered paint treatment by Dirt McGurk. The result is a rig that looks as rugged as it performs. On the rocks, the Cheat Code build shows excellent composure, pulling through technical lines with the added help of front overdrive and upgraded steering.
What stands out is the balance between creativity and practicality. The combination of lightweight carbon, tuned gearing, and carefully selected suspension parts creates a crawler that is both distinctive and highly capable.
Final Verdict
The Mazz Designs Cheat Code SCX24 build is proof of what can be achieved with the right mix of chassis design and component choices. The lightweight frame, steering enhancements, and thoughtful gearing elevate the SCX24 well beyond stock performance, while the weathered Power Wagon body gives it presence on the trail. This is not just a collection of parts but a showcase of how purposeful upgrades can transform a micro crawler into something special.
